Bakerydrop AWS Infrastructure & Deployment Guide

Overview

Bakerydrop is a PHP-based bakery ordering system deployed on AWS using a modern containerized architecture. The application uses OpenTofu (Terraform) for infrastructure as code and GitHub Actions for CI/CD with blue-green deployments.

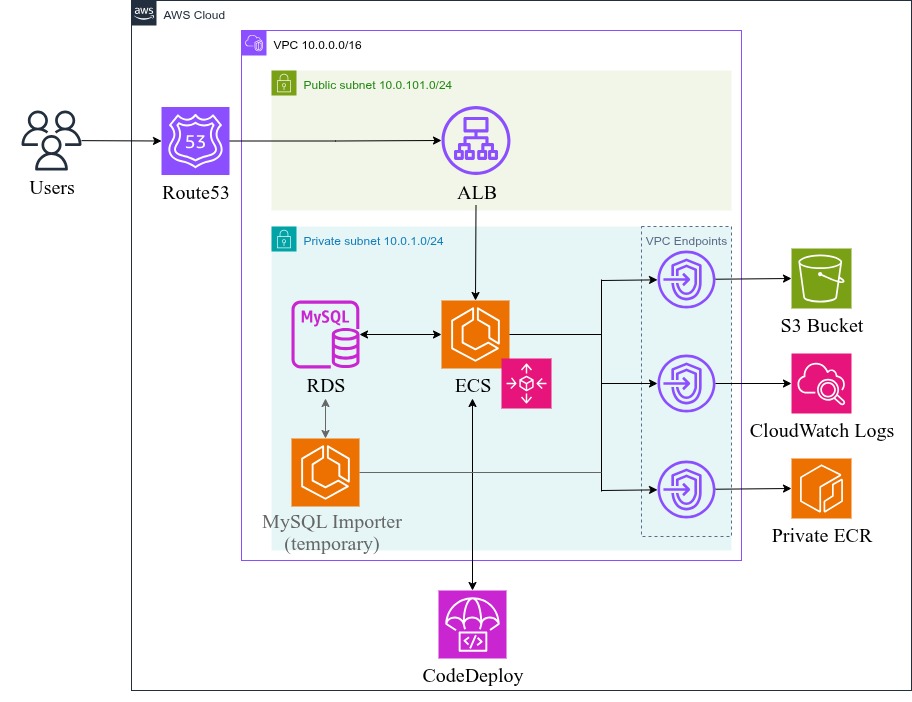

Architecture Overview

The infrastructure consists of:

VPC with public/private subnets across 2 AZs
Application Load Balancer for HTTPS termination and traffic distribution
ECS Fargate for containerized application hosting
RDS MySQL for database storage
ECR for container image registry
S3 for environment configuration storage
Route53 for DNS management
CodeDeploy for blue-green deployments

Infrastructure Components (OpenTofu/Terraform)

Core Infrastructure (`setup/main.tf`)

1. VPC and Networking

# VPC Configuration
- CIDR: 10.0.0.0/16
- Public Subnets: 10.0.101.0/24, 10.0.102.0/24
- Private Subnets: 10.0.1.0/24, 10.0.2.0/24
- Availability Zones: eu-central-1a, eu-central-1b

Resources Created:

VPC with DNS hostnames enabled
Internet Gateway for public subnet access
Public/Private subnets across 2 AZs
Route tables and associations
VPC Endpoints for ECR, S3, and CloudWatch Logs

2. Security Groups

ALB Security Group: Allows HTTP (80), HTTPS (443), and test port (8080)
ECS Tasks Security Group: Allows inbound from ALB on port 80
RDS Security Group: Allows MySQL (3306) from VPC CIDR
MySQL Importer Security Group: Temporary access for database setup

3. Application Load Balancer (ALB)

Configuration:
- Internet-facing ALB in public subnets
- HTTPS listener (443) with SSL certificate
- HTTP to HTTPS redirect (301)
- Test listener (8080) for blue-green deployments
- Two target groups (blue/green) for zero-downtime deployments

4. RDS MySQL Database

Specifications:
- Engine: MySQL 8.0
- Instance Class: db.t4g.micro
- Storage: 20GB GP2
- Multi-AZ: No (cost optimization)
- Backup Retention: 7 days
- Encryption: At rest

5. ECS Fargate Cluster

Configuration:
- Fargate launch type (serverless containers)
- Container Insights enabled
- Auto Scaling: 1-3 tasks based on CPU/Memory
- Blue-Green deployment support via CodeDeploy

6. Container Registry (ECR)

Main application repository: bakerydrop
MySQL importer repository: bakerydrop-mysqlimporter
Image scanning enabled
Lifecycle policies for cost optimization

7. S3 Bucket for Environment Files

Features:
- Versioning enabled
- Server-side encryption (AES256)
- Public access blocked
- Stores .env configuration files

8. Route53 DNS

A record pointing to ALB
SSL certificate validation
Custom domain support

9. CodeDeploy for Blue-Green Deployments

Configuration:
- ECS deployment type
- Blue-Green strategy
- Automatic rollback on failure
- 5-minute termination wait time

MySQL Importer Module (`setup/modules/mysqlimporter/`)

A temporary ECS task for database initialization:

Components:

Dedicated ECR repository
ECS cluster and task definition
Security group with database access
IAM roles for task execution

Process:

Builds Docker image with SQL dump
Runs as Fargate task to initialize database
Creates application user and imports schema
Self-destructs after completion

GitHub Actions Workflows

1. Infrastructure Setup (`setup.yml`)

Trigger: Manual workflow dispatch

Steps:

Environment Setup
- Checkout code
- Install AWS CLI v2
- Configure AWS credentials
- Setup OpenTofu

Infrastructure Deployment

tofu init
tofu plan -out=tfplan.out
tofu apply tfplan.out

Database Initialization
- Build MySQL importer Docker image
- Push to ECR
- Run ECS task to import database schema
- Monitor task completion
- Clean up importer resources
Environment Configuration
- Generate .env file with database credentials
- Upload to S3 bucket for application access

Required Secrets:

AWS_ACCESS_KEY_ID
AWS_SECRET_ACCESS_KEY
DB_ADMIN_USER
DB_ADMIN_PASSWORD
DB_APP_USER
DB_APP_PASSWORD
ECS_CONTAINER_IMAGE
ROUTE53_HOSTED_ZONE_ID
ACM_CERTIFICATE_ARN

2. Application Deployment (`deploy.yml`)

Trigger: Manual workflow dispatch (can be configured for push to main)

Blue-Green Deployment Process:

Build Phase
- Checkout latest code
- Build Docker image with multi-stage build
- Push to ECR with latest tag
Deploy Phase
- Update ECS task definition with new image
- Trigger CodeDeploy blue-green deployment
- Route test traffic to green environment (port 8080)
- Validate deployment health
- Switch production traffic to green
- Terminate blue environment after 5 minutes

Environment Variables:

AWS_REGION: eu-central-1
ECR_REPOSITORY: bakerydrop
ECS_CLUSTER: bakerydrop-cluster
ECS_SERVICE: bakerydrop-service
CODEDEPLOY_APPLICATION: bakerydrop-deploy

Container Architecture

Multi-Stage Dockerfile

The application uses a sophisticated multi-stage Docker build:

Stage 1: Builder

FROM php:8.3-fpm-alpine AS builder
# Install build dependencies
# Install Composer
# Copy and install PHP dependencies
# Optimize autoloader for production

Stage 2: Runtime

FROM php:8.3-fpm-alpine
# Install runtime dependencies:
# - nginx (web server)
# - supervisor (process manager)
# - mysql-client (database connectivity)
# - python3 + boto3 (AWS S3 integration)

Nginx + PHP-FPM Architecture

The container runs both Nginx and PHP-FPM using Supervisor:

Nginx Configuration (`nginx.conf`)

server {
    listen 80;
    root /var/www/html;

    location ~ \.php$ {
        fastcgi_pass unix:/var/run/php-fpm.sock;
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        include fastcgi_params;
    }
}

PHP-FPM Configuration (`php-fpm.conf`)

[www]
# Unix socket communication with Nginx
listen = /var/run/php-fpm.sock
listen.owner = www-data
listen.group = www-data
listen.mode = 0660

# Process management
pm = dynamic
pm.max_children = 5
pm.start_servers = 2
pm.min_spare_servers = 1
pm.max_spare_servers = 3

Socket Communication

Why Unix Sockets?

Performance: Faster than TCP sockets for local communication
Security: No network exposure, file system permissions control access
Resource Efficiency: Lower overhead than network sockets

How it works:

PHP-FPM creates Unix socket at /var/run/php-fpm.sock
Nginx forwards PHP requests to this socket
PHP-FPM processes the request and returns response
File permissions ensure only www-data can access

Supervisor Process Management (`supervisord.conf`)

[program:php-fpm]
command=/usr/local/sbin/php-fpm -F
priority=100

[program:nginx]
command=/usr/sbin/nginx -g "daemon off;"
priority=50

Environment Configuration

Dynamic Configuration Loading (`entrypoint.sh`)

# Check for S3 environment file
if [ -n "$S3_ENV_FILE" ]; then
    # Download .env from S3 using boto3
    python3 -c "import os, boto3; ..."
else
    # Use environment variables directly
    echo "$ENV_FILE_CONTENT" > /var/www/.env
fi

Benefits:

Secure credential management via S3
Environment-specific configurations
No secrets in container images
Runtime configuration updates

Deployment Process

Initial Setup

Configure AWS credentials and secrets in GitHub
Run setup.yml workflow to create infrastructure
Verify database initialization and S3 configuration

Application Updates

Push code changes to repository
Run deploy.yml workflow (or configure automatic triggers)
Monitor blue-green deployment in AWS Console
Verify application health on test port (8080)
Production traffic automatically switches after validation

Monitoring and Logging

CloudWatch Logs: Centralized logging for all services
Container Insights: ECS performance metrics
ALB Access Logs: Request tracking and analysis
Auto Scaling: Automatic capacity management

Security Features

Network Security

Private subnets for application and database
Security groups with least privilege access
VPC endpoints for AWS service communication
No direct internet access for containers

Data Protection

RDS encryption at rest
S3 bucket encryption
HTTPS-only communication
Secrets managed via GitHub Secrets and S3

Access Control

IAM roles with minimal required permissions
Task-specific execution roles
VPC-scoped security groups
File system permissions in containers

Cost Optimization

Resource Sizing

ECS: 0.25 vCPU, 512MB RAM (adjustable)
RDS: db.t4g.micro (burstable performance)
ALB: Application Load Balancer (pay per use)

Auto Scaling

Scale down to 1 task during low usage
Scale up to 3 tasks under load
CPU and memory-based scaling policies

Storage Optimization

ECR lifecycle policies
CloudWatch log retention policies
S3 versioning with lifecycle rules

Troubleshooting

Common Issues

Database Connection: Check security groups and VPC configuration
Container Startup: Review CloudWatch logs for initialization errors
SSL Certificate: Verify ACM certificate and Route53 configuration
Deployment Failures: Check CodeDeploy logs and rollback if needed

Monitoring Commands

# Check ECS service status
aws ecs describe-services --cluster bakerydrop-cluster --services bakerydrop-service

# View container logs
aws logs tail /ecs/bakerydrop --follow

# Check deployment status
aws deploy get-deployment --deployment-id <deployment-id>

This architecture provides a robust, scalable, and secure foundation for the bakerydrop application with modern DevOps practices and AWS best practices.
